Kempower Power Unit and Satellites
Kempower Power Unit is the scalable and modular solution for delivering up to 600 kW of total charging power to up to 8 x Kempower Satellites, dynamically.
Scale to meet your needs now, and in the future
The Kempower Power Unit (CPU) is a modular and scalable fast-charging cabinet for electric passenger cars, electric commercial vehicles, and electric off-highway vehicles. Also suitable for electric marine operations. Whether you need a lot of EV charging power in retail, at a worksite, or for a large fleet, the Kempower Power Unit is for you.
​
With Kempower Power Unit’s modular structure, a single CPU offers power from 50 kW to 200 kW. Two to three CPU cabinets can be added together, for a total of 600 kW. When your business grows and you need more charging power, the Kempower Power Unit can be expanded by adding mores cabinets and/or modules to cover your needs.
Manufactured in Finland
Kempower Satellite Charging System
Note: Charge Hub are a direct Sales Partner with Kempower, Finland. Not just a Reseller.

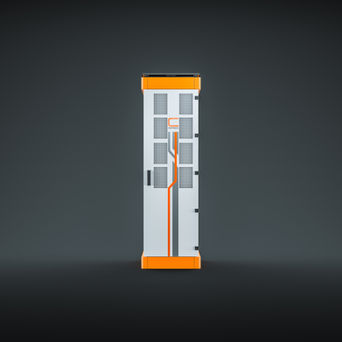

Kempower Power Unit (CPU)
Individually configured – ideal for growing electric fleets:
​
The Kempower Power Unit (CPU) is designed to serve a large number of electric vehicles. As your business grows, the system is easily scaled up accordingly, to a maximum of 600kW, due to the modular rack-style structure of the cabinet with add-on power modules to furnish cabinets to their full potential. The weatherproof cabinet frame and a special coating of the electronics on modules ensure that the CPU cabinets can be installed both indoors and outdoors. They are tested for tough weather and can endure (Australian) sun and dust, rain, snow, and dirt. The versatility offers nearly limitless possibilities via charging cables and pantographs.
Key benefits
Dynamic Power
Enjoy on-demand power routing. CPU cabinets can route selected number of power channels to a single outlet or multiple.
Optimized EV Charging
The combination of intelligent CPUs and ChargEye provides the toolset you need to optimize business.
Higher Uptime
Our CPU’s structure demands minimal maintenance. A maintenance toolset is available in ChargEye Advanced Level connected service package.
Electrical Capacity Requirements
# | Charging Power (kW) | Connecting Power (kVA) | Main Phase Current (A) | Fuse Size (A) |
---|---|---|---|---|
12 | 600 | 680 | 980 | 1000 |
11 | 550 | 623 | 900 | 1000 |
10 | 500 | 566 | 820 | 1000 |
9 | 450 | 509 | 735 | 800 |
8 | 400 | 452 | 654 | 800 |
7 | 350 | 396 | 572 | 630 |
6 | 300 | 340 | 490 | 630 |
5 | 250 | 283 | 408 | 500 |
4 | 200 | 226 | 327 | 400 |
3 | 150 | 170 | 245 | 315 |
2 | 100 | 113 | 164 | 200 |
1 | 50 | 67 | 82 | 100 |
Note:
The standard passenger electric vehicle battery voltage is 400VDC, which perfectly suits a 500VDC charging system. Heavy vehicle/buses utilise a higher battery voltage, around 615VDC, requiring a 800VDC system.
For a 500VDC C Series system, Kempower offer an Adaptive Voltage approach. Where two modules can combine to provide a 1000VDC output, so that 800VDC passenger vehicles (Porsche Taycan) receive their maximum charge.
Kempower DC Satellite
Kempower Satellites offer the best user experience for all EV drivers:
​
The Kempower satellite charging system is the best choice for Charge Point Operators, charging site planners, and anyone looking for the best-in-class fast charging system. There can be up to 8 x Satellites in one Kempower fast charging satellite system, either 4 x Satellites with dual charging outlet, or 8 x Satellites with single charging outlet.
​
Kempower Satellites are designed so they can be easily installed in most locations. Thanks to their small footprint, they also fit charging sites with limited space. The cable management solution (pat. pend.) makes handling the heavy charging cable effortless and easy. Kempower Satellites are equipped with a user-friendly, intuitive touch screen and RFID reader. The charging session can also be followed on a mobile phone.
Key benefits
User-friendly design
Easy cable management for all EV drivers. Spring design that extends cable reach. Touch screen display and RFID reader. Option to include payment terminal. View charging status on mobile phone.
Small footprint
Can be installed in areas with very limited space (e.g. in parking halls, next to a wall). Quiet chargers with minimum noise pollution.
Powerful EV charging
Up to 8 charging outlets in one Kempower charging satellite system. Kempower Power Unit provides up to 600 kW of total charging power. Kempower Liquid Cooled Satellite provides up to 400 kW with a 500 A charging cable and plug, for heavy-duty electric vehicles.
Enhanced customer experience with ChargEye
-
Monitor the overview of the performance of your fleet on the Kempower ChargEye remote monitoring and diagnostic tool 24/7.
-
Let ChargEye manage site power and distribution independently.
-
Get insights about vehicle models visiting your chargers.
-
See reports of charging behaviour.
-
Integrate to the Charge Hub software/backend for billing and alerts.
-
Show real-time charging information, pricing, and cost to drivers.
-
Choose which languages are available.
-
Enable accurate charging status and estimates for drivers on-the-go.
-
Speak to us today about Depot Advanced and Depot Master.
Kempower ChargEye
